Symphon-E App ASKOMA Heating Element Read Access

1. Introduction

Dear customer,

Thank you for choosing the "Symphon-E App ASKOMA Heating Element Read Access". You are welcome to send us your suggestions so that we can further improve the quality of our products.

2. Installation and configuration — Symphon-E App ASKOMA Heating Element Read Access

2.1. Prerequisites

  1. The heating element must be connected to the network via LAN.

  2. The Heckert Solar energy storage device must be connected to the network.

2.2. Configuration of the heating element

Askoma quick setup LAN

  1. Select LAN as the type of compound and click on Next.
Askoma quick setup FEMS

  1. Setzen Sie den Haken bei Heckert Solar EMS und klicken Sie auf Weiter.
Askoma quick setup PTH

  1. Enter the number 1 as TCP ID.

  2. Enter the number 502 as TCP Port.

  3. Enter the DHCP IP address of the EMS as the IP address. You can find this in the Heckert Solar Online Monitoring by clicking on the burger menu under Settings → Network configuration.

  4. Click on Next.
Askoma quick setup complete

  1. The configuration of the ASKOMA heating element is now complete.

The connection to EMS must now be established.

2.3. Installation of the Symphon-E App ASKOMA Heating Element Read Access

The exact procedure for installing an Symphon-E App can be found here.

The dynamic IP address of the ASKOMA heating element must be specified during installation. You can obtain this in the ASKOMA web interface.

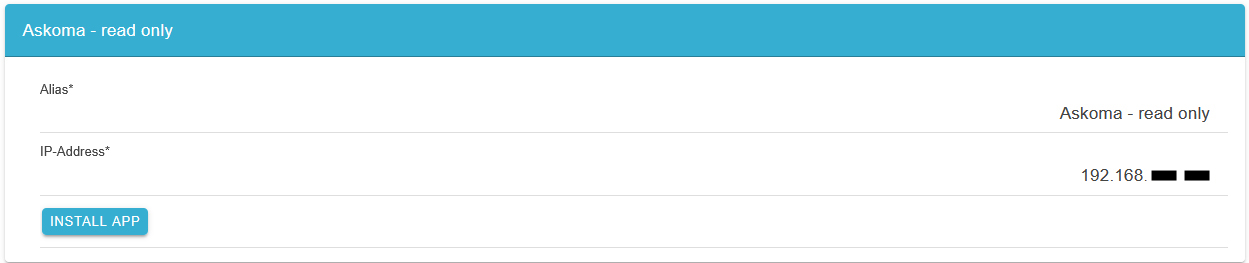

Askoma app installation 2
Image 1. Entering the DHCP IP address — ASKOMA heating element

The widget then becomes visible in Online Monitoring:

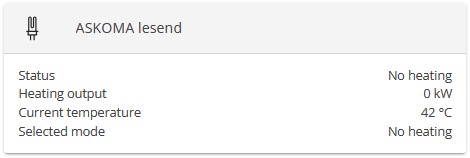

Askoma flat widget
Image 2. ASKOMA Flat Widget

Click on the History tab in Online Monitoring and then click on the ASKOMA widget to open the historical view of the ASKOMA heating element:

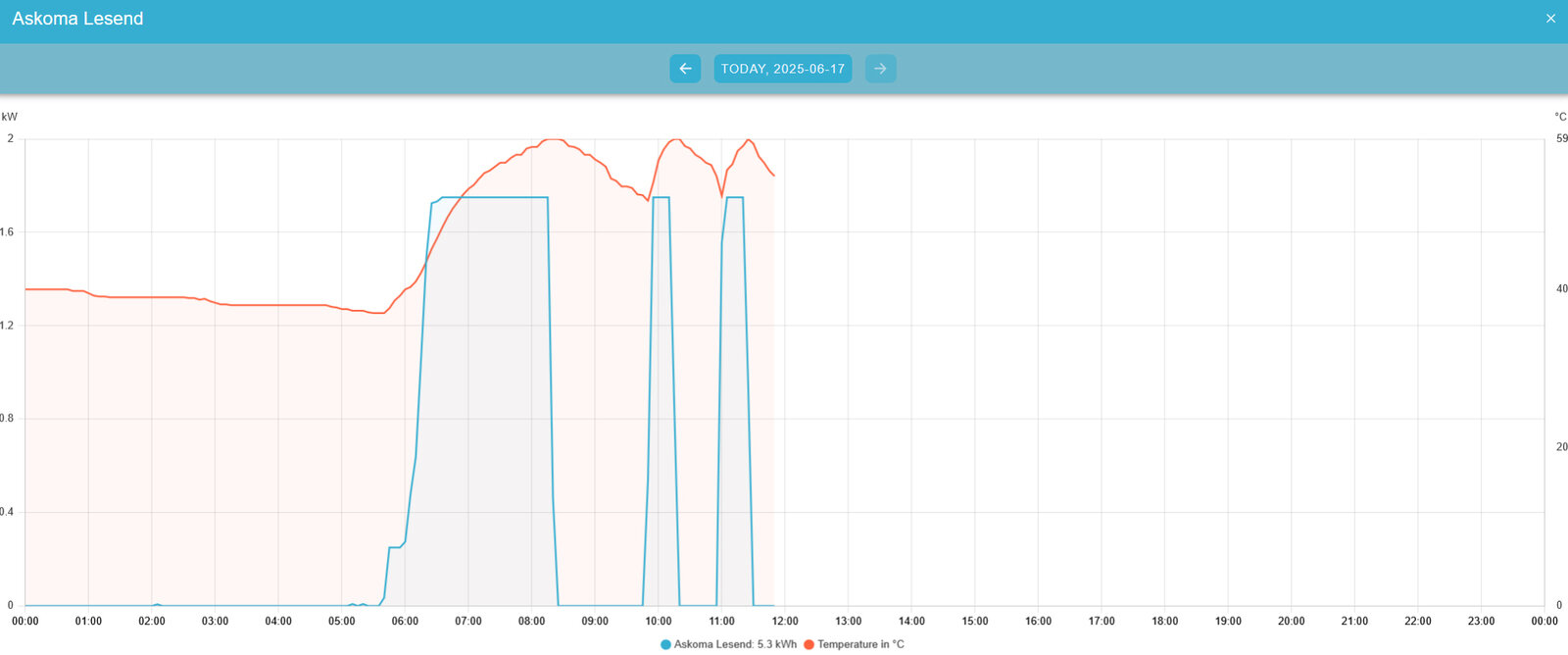

Askoma history graph
Image 3. Historical view — Graph — ASKOMA widget

  • No further settings need to be made in Energiemanagement System.

  • The installation is now complete.

Optional:

When purchasing the Symphon-E App Power-to-Heat Read Access, it must be installed via the Heckert Solar App Center.
