Symphon-E App Time-of-Use Tariff (LUOX Energy)

Dear customer,

Thank you for choosing the "Symphon-E App Time-of-Use Tariff".

The following instructions describe how to install and configure the Symphon-E App Time-of-Use Tariff in compound with LUOX Energy.
You are welcome to send us your suggestions so that we can further improve the quality of our products.

1. Symphon-E App Time-of-Use Tariff (LUOX Energy) — Description

The Symphon-E App Time-of-Use Tariff (LUOX Energy) enables the use of the Symphon-E App Time-of-Use Tariff in conjunction with the provider LUOX Energy.

1.1. Compatibility:

Table 1. Compatibility: LUOX Energy / Industrial

Country | System

Industrial S

Industrial L

Industrial XL

Germany

Country \ System

Symphon-E

Germany

2. Installing the app

When you ordered the "Symphon-E App Time-of-Use Tariff (LUOX Energy)", you received a 16-digit license key. You can use this license key to redeem the app independently in the EMS App Center.

You can find instructions on how to proceed at this link: here .

The app is configured during installation.

2.1. Configuration

  1. The following window is displayed during installation, in which you can also set the Maximum grid withdrawal by storage loading:

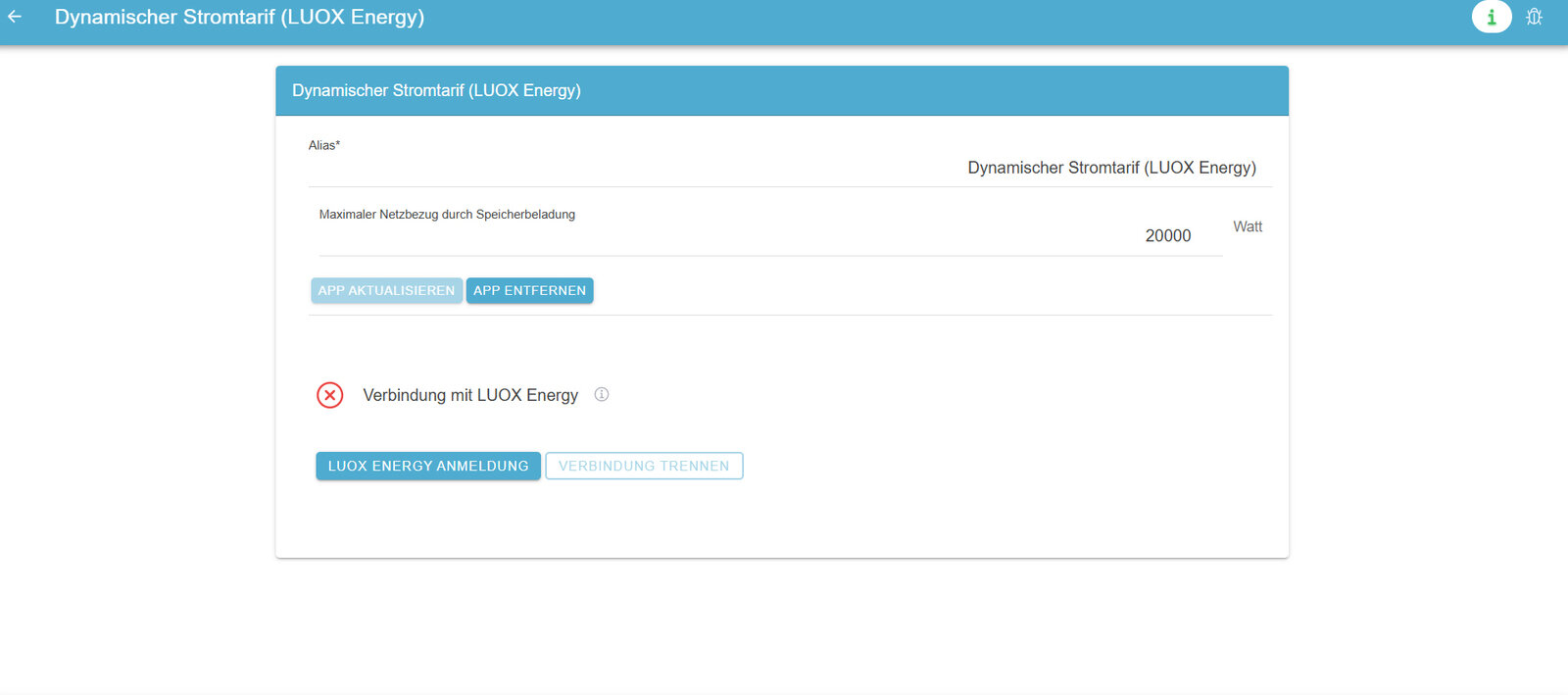

luox app after installation
Figure 1. Configuration of the app

  1. Immediately after installation, there is still no connection to LUOX Energy.

  2. Click on LUOX ENERGY REGISTRATION. You will be redirected to the following website:

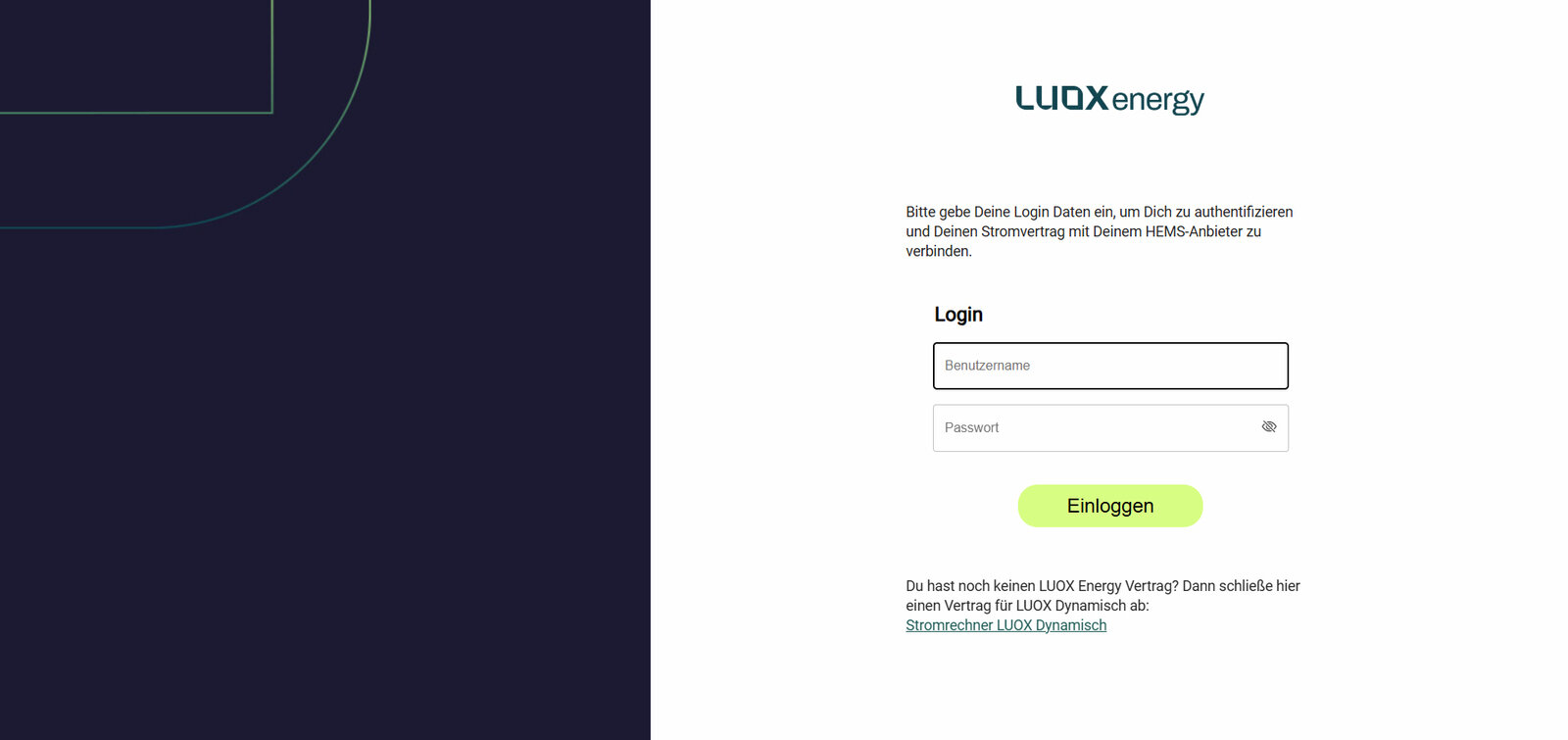

luox OAuth referral at signup
Figure 2. OAuth login at LUOX Energy

  1. After logging in to LUOX Energy, the connection is established:

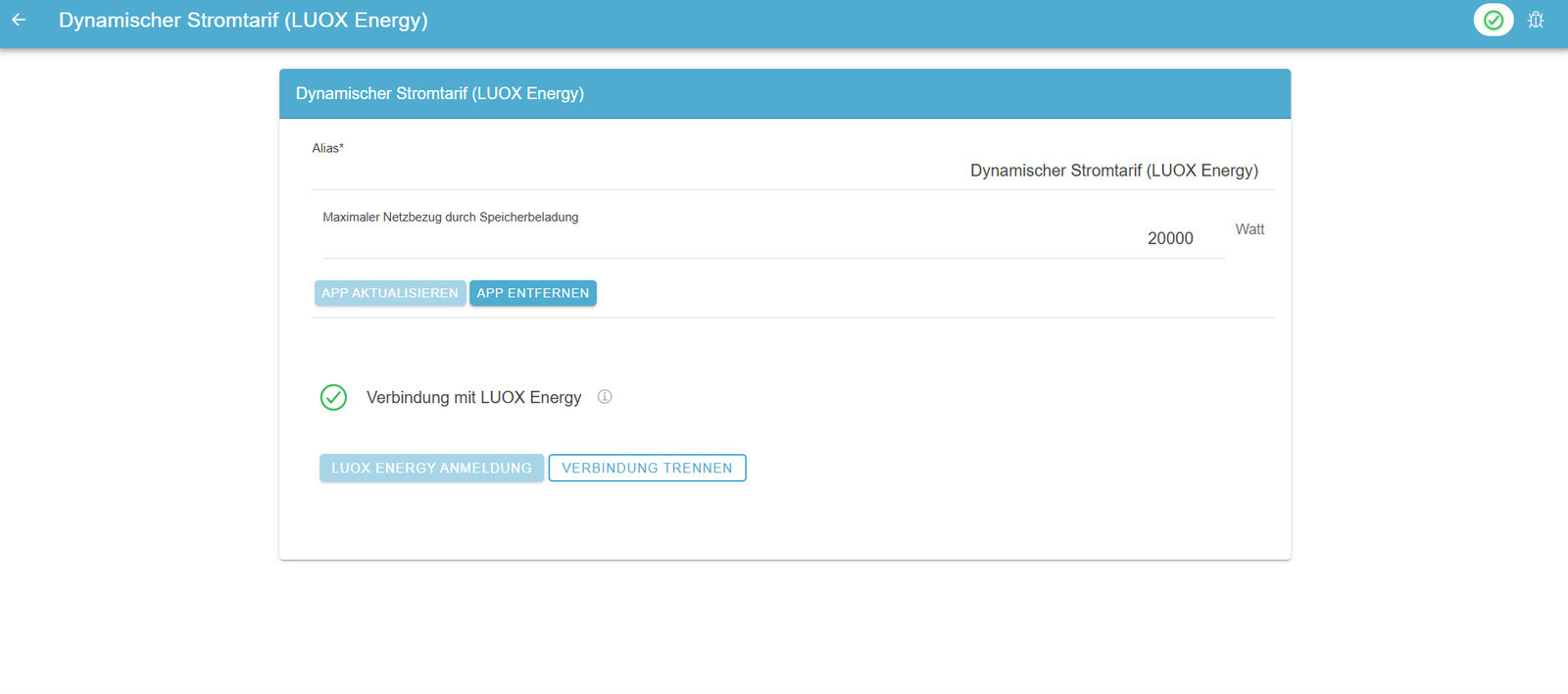

luox edit app
Figure 3. Connection to LUOX Energy established

  1. The following flat widget is now displayed in your FENECON Online Monitoring:

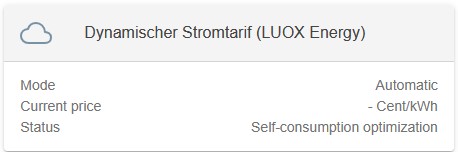

luox widget
Figure 4. Time-of-Use Tariff/LUOX Flat Widget

  1. Click on the flat widget to open the expanded view:

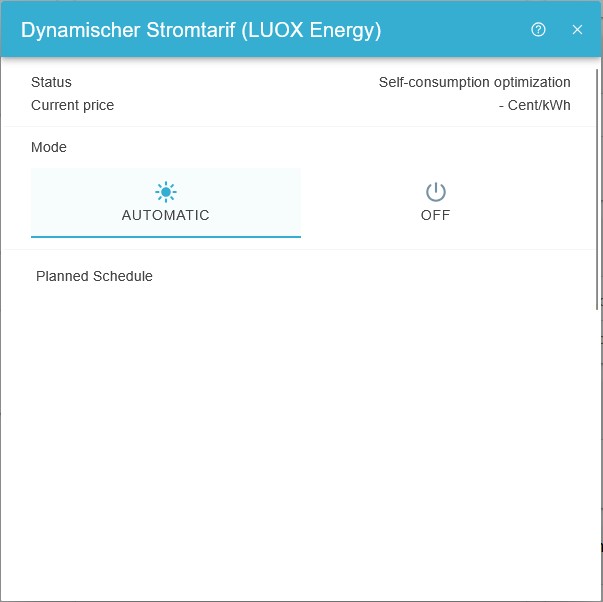

luox widget advanced
Figure 5. Time-of-Use Tariff/LUOX-Widget — Advanced

  1. This completes the configuration.
