Symphon-E App clever-PV

1. Introduction

Dear customer,

Thank you for choosing the "Symphon-E App clever-PV". You are welcome to send us your suggestions so that we can further improve the quality of our products.

2. Installing the app

  • Start in the EMS Online Monitoring.

FENECON Online Monitoring settings

  1. Click on the burger menu at the top left in EMS Online Monitoring.

  2. Click on "Settings".

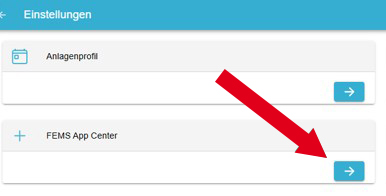

App Center

  1. Click on the blue arrow next to the EMS App Center button.

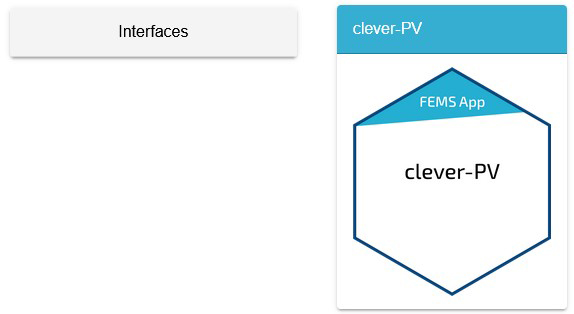

clever PV App Center

  1. Navigate to "Interfaces" and click on the tile Symphon-E App clever-PV.

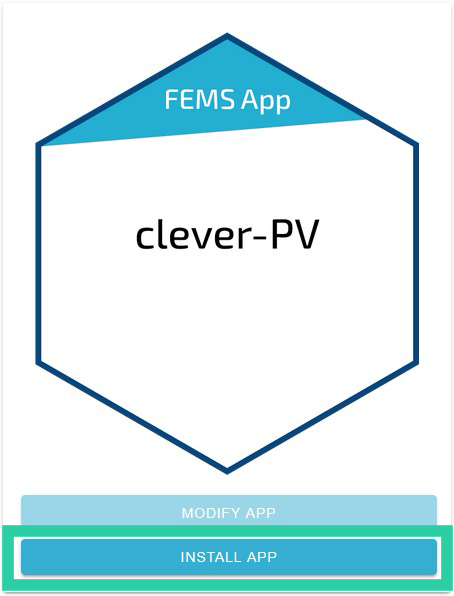

install app tile clever PV

  1. Then click on "Install app".

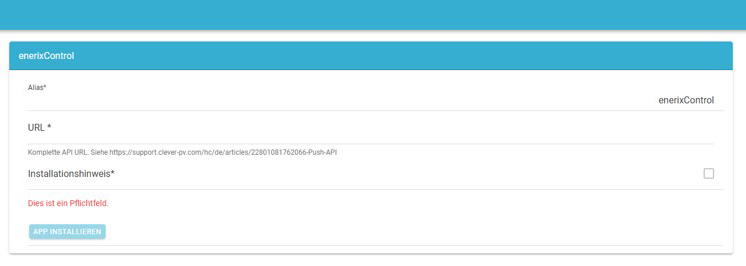

install window

  1. An installation field appears in which a URL must be entered.
    → This is generated by clever-PV.

2.1. Establish a connection to clever-PV

  • Open the link: clever-PV , the online Home Energy Management System (HEMS), in a new browser tab.

    • On a mobile device: Alternatively, download the clever-PV app.

  • Click on "Register" at the bottom left.

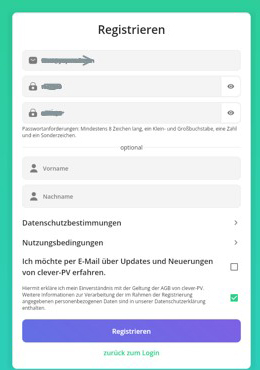

cleverpv registration

  1. Fill in the registration form and then click on "Register".

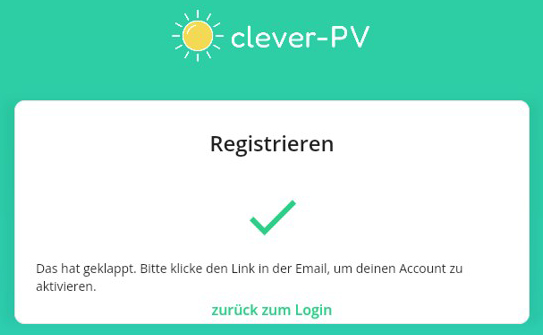

cleverpv registration success

  1. If your registration is successful, this window will appear and you will receive a confirmation by e-mail.

  2. Open the e-mail and click on the link.

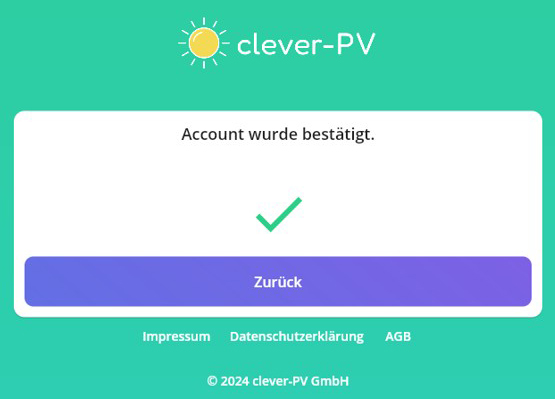

cleverpv acc confirmation

  1. Select "Back".
    → You will now see the login screen.

  2. Log in with your data

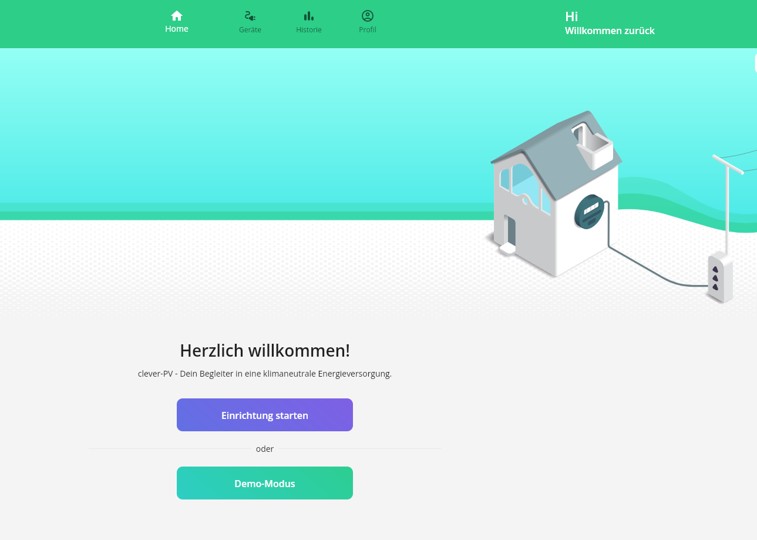

cleverpv setup screen

  1. Click on "Start setup" in the following screen.

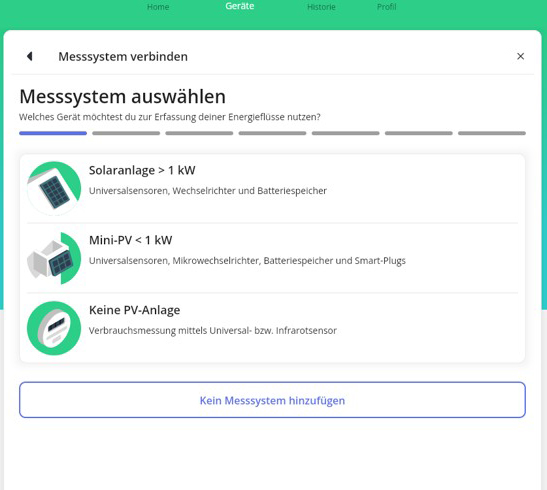

cleverpv measuring system

  1. Choose the right measuring system depending on the size of your PV system.

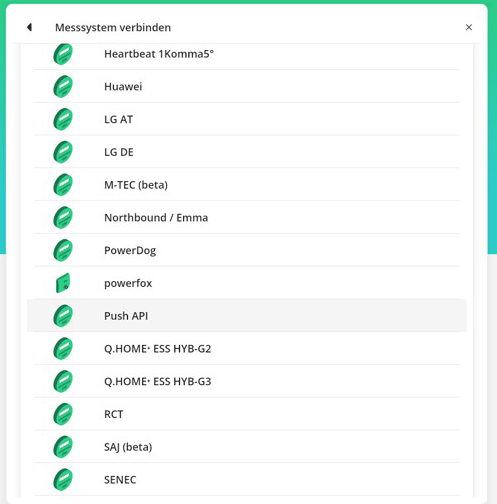

cleverpv push api

  1. Select "Push API" from the list.

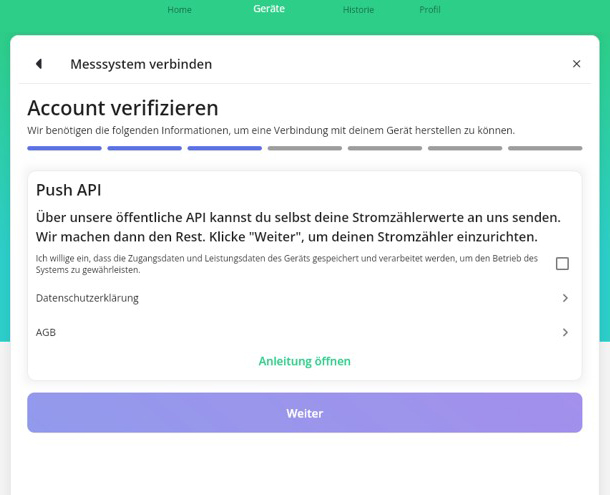

cleverpv acc verification

  1. The next step is to verify the account.

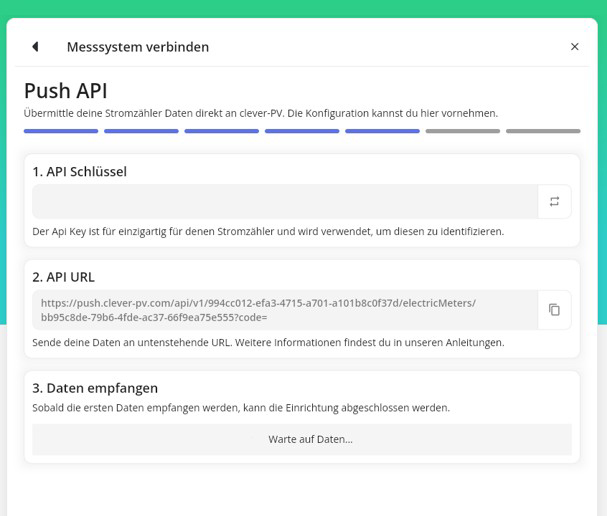

cleverpv connect measuring system

  1. The API URL is then displayed.

    1. This URL is sometimes incomplete at this point (code=).

    2. In this case, complete the device setup by clicking "Save."

    3. Then go to "Devices" and open the "Settings" for the device you just set up.

    4. The full URL you need to install Symphon-E App is displayed there.

  2. Copy the displayed URL to your clipboard.

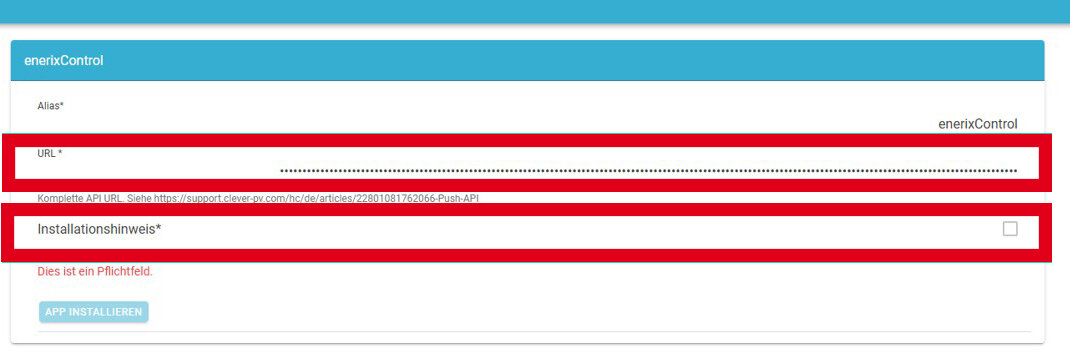

installation window 2

  1. Paste the URL in the Heckert Solar installation field

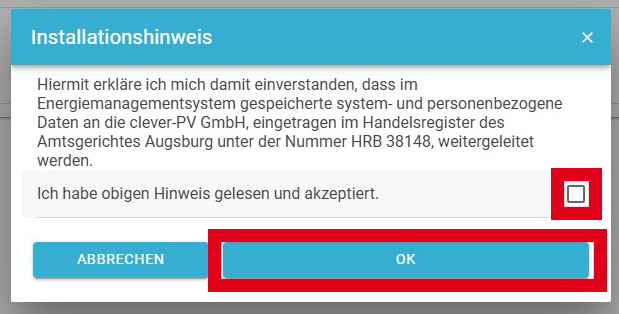

data protection notice

  1. After confirming the data protection notice, the app can be installed.
clever PV App Center

  1. Once the installation is complete, clever-PV can be found in the EMS App Center under "Interfaces (Installed)".

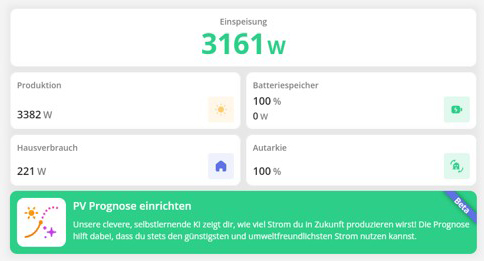

enerix control monitoring

  1. Clever-PV can now be used.

You can find descriptions of the full range of features offered by clever-PV at the following link: clever-PV documentation .
