1.2. Qualification of the installing electrician

A qualified electrician is a person who has the necessary experience and training:

  • Setting up, switching on, switching off, disconnecting, short-circuiting and repairing circuits and devices

  • Standard maintenance and use of protective devices in accordance with current safety standards

  • First aid/emergency care

  • Current knowledge of local regulations, standards and guidelines

1.3. Symbols used

Before reading the manual, you should familiarize yourself with the different types of safety warnings. You should also familiarize yourself with the importance of the safety warnings.

1.4. Darstellungskonventionen

Table 1. Darstellungskonventionen
This symbol indicates an imminent danger. If this danger is not avoided, it can lead to death or serious injury.
This symbol indicates a potentially dangerous situation. If this dangerous situation is not avoided, it may result in minor or moderate injury.
This symbol indicates a warning. Failure to observe this warning may result in damage and/or destruction of the system.
This symbol indicates a note. It is recommended that the note be observed.

2. Produktbeschreibung

2.1. Scope of delivery

Prüfen Sie, nachdem Sie die Lieferung erhalten haben, ob alle Bestandteile mitgeliefert wurden. Prüfen Sie den Lieferumfang auf Beschädigungen. Sollte etwas fehlen oder beschädigt sein, wenden Sie sich bitte sofort an den Lieferanten. Folgende Komponenten sind in der Lieferung enthalten:

  • KEBA KeContact P30 c-series Ladestation

  • 11 kW bzw. 22 kW mit integriertem 4-Meter-Anschlusskabel und Typ-2-Stecker oder

  • 22 kW mit Typ-2-Steckdose, zum Anschluss eines eigenen Kabels

  • Installationsanleitung — Typ-2-Ladestation KEBA 11/22 kW 4 m/Steckdose

2.2. Prerequisites

Für den Einsatz der Ladestation ist erforderlich:

  • Symphon-E App KEBA KeContact P30 c-series

Die »Symphon-E App KEBA KeContact P30 c-series« ist nicht im Lieferumfang enthalten. Diese muss — falls noch nicht vorhanden — zusätzlich erworben werden.

3. Commissioning

M002

To install the KEBA charging station, please follow the instructions in the "KeContact KC-P30 Charging Station Installation Manual".
Installation manual — KEBA KeContact KC-P30

M002

The "Configuration Manual" for the x-series should also be read and internalized:
Configuration manual — KEBA KeContact P30 x-series

This quick guide refers to the original user manuals.
It serves as an installation aid for qualified electricians in the area of communication interfaces, but is not a substitute for studying the user manuals.

3.1. Ethernet connection

Establish the network connection via the LSA terminal block X4.

Please note that the Ethernet connection X3 (here: RJ45) was designed as a service port. This is not suitable for a permanent, stable connection to the Heckert Solar Energy Management System.

To connect to the LSA terminal block X4, the network cable must be disconnected and the cables need to be connected to pins 1-4.
The assignment type of the customer network must be observed.

ibnevcs 22
Figure 1. Diagram for the network connection
ibnevcs 23
Figure 2. Example of the network connection

After connection to the customer network, the wallbox is assigned an IP address using DHCP. This IP address must be determined in the DHCP server, e. g. the router.

image01 1
Figure 3. Setting the lower switch panel for DHCP
An IP address can only be assigned via DHCP if the DIP switches of the second switch panel D2.1 to D2.4 are set to "OFF".

After entering your login data (included in the scope of delivery), a website opens that looks like this:

KEBA
Figure 4. KEBA software

The Keba c-series web interface provides access to status information such as the total energy charged. This web interface can only be used for reading, no configurations or settings can be made here.

3.2. Configuration of the DIP switches

Various settings such as IP assignment and control can be made via the DIP switches. In the following illustration you can see the two positions of the switches.

ibnevcs 15
Figure 5. DIP switch

The DIP switches can be accessed by removing the front cover. Here you will find two different switch panels, which we will explain in more detail below.

ibnevcs 16
Figure 6. DIP switch DSW

We differentiate here between the top panel "DSW1" and the bottom panel "DSW2".

3.2.1. Setting the charging station control functions

The first three DIP switches on the upper DSW1 panel are used to control and forward signals from the charging station.

Of these three switches we only need D1.3, which is used to activate the SmartHome interface via UDP, allowing the EMS to set the charging specifications for the charging station via the UDP protocol. D1.1 and D1.2 remain in the "OFF" position.

image02 1
Figure 7. Setting the upper switch bar for UDP

3.2.2. Setting the permissible amperage

DIP switches D1.6 - D1.8 are used to set the permissible current, which determines the maximum charging power of the charging station, provided the vehicle to be charged supports this charging power.

ibnevcs 20
Figure 8. Setting the amperage

3.2.3. More DIP switches

However, all other DIP switches have no function in conjunction with the EMS or can influence the connection, e. g. D2.8.
Therefore they remain in the "OFF" position after commissioning.

image04 1
Figure 9. Configuring the DIP switches for a wallbox

3.2.4. Charging network

The Keba KeContact P30 c-series can be used as a slave in a charging network with a Keba KeContact P30 x-series. In this case, the x-series takes over the management of the RFID authorization. To enable communication between the charging stations, the DIP switch D2.5 must be activated on all charging stations (x-series and c-series). In addition, the c-series must have received a dynamic IP address from the DHCP server. If there is no charging network (only one charging station is available), the DIP switch D2.5 does not need to be activated.

image03 1
Figure 10. Setting the DIP switches for a charging network

3.3. § 14a of the German Energy Industry Act (EnWG)

From 01/01/2024, all wallboxes & charging stations in the private sector must be controllable by the grid operator in accordance with § 14a of the German Energy Industry Act. Depending on the manufacturer, your wallbox can be dimmed to the required 4.2 kW charging power and/or switched off for the required period of time.

Currently, the proper dimming of wallboxes & charging stations is not achieved via the Heckert Solar energy management, but via solutions provided by the wallbox manufacturers.

Prerequisites

All §-14a-compliant KEBA KeContact Series that can be integrated into the EMS Online Monitoring are listed below.

Table 2. 14a-compliant KEBA KeContact Series models

Wallbox model type

§-14a conformity (e. g. potential-free contact X1, Modbus TCP, OCPP)

KEBA KeContact P30 X-Series

KEBA KeContact P30 C-Series

KEBA KeContact company car wallbox

KEBA KeContact PV Edition

A KEBA KeContact can currently be properly integrated into the Energiemanagement System via the potential-free contact X1.

Connection of the control box

The device is configured via the potential-free contact X1 of the compatible KeContact charging station.

Connect the control box to the input and output terminals of the potential-free contact X1 as shown in the [Circuit diagram for the potential-free contact X1].

ibnevcs 30
Figure 11. Circuit diagram for the potential-free contact X1

To enable control by external components (here: control box), the DIP switch D1.1 must be set to "ON".

The wallbox then needs to be restarted.

ibnevcs 31
Figure 12. DIP switches for contact X1

Setting up the EnWG-compliant amperage

From software version 1.18 or firmware version 3.10.56, the available charging current for the KeContact P30 series can be set to 0 A or 6 A in accordance with EnWG using the DIP switches.

In software version 1.17.2, the EnWG-compliant current was predefined to 8 A. For further information, please refer to the KEBA KeContact manuals or visit KEBA KeContact FAQ.

To reduce the charging current to a specific value, set DIP switch D2.6 to the desired position.

ibnevcs 32
Figure 13. Charging current via DIP switch D2.6
Activating DIP switch D1.1 results in new dependencies for starting a charging process using RFID authorization.
ibnevcs 33
Figure 14. Requirements for initiating a charging process

Die Konfiguration ist hiermit abgeschlossen.

4. Install Symphon-E App KEBA KeContact P30 c-series

In the Symphon-E App Center you will find all installable Symphon-E Apps — such as the Symphon-E App KEBA KeContact P30 c-series.

In the user manual Symphon-E App Center you will find detailed instructions on how to use the Symphon-E App Center. It also describes how to register and redeem a license key.

There are two ways to install an app via the Symphon-E App Center. Only the [Direct installation] is described below, whereby a license key is registered and redeemed in the EMS.

4.1. Direct Installation

To install the Symphon-E App KEBA KeContact P30 c-series directly, go to the overview of the Symphon-E App Center.

Only apps from the "Available" category can be installed.
fems app 1
Figure 15. App installation — Variant 2: Step 1

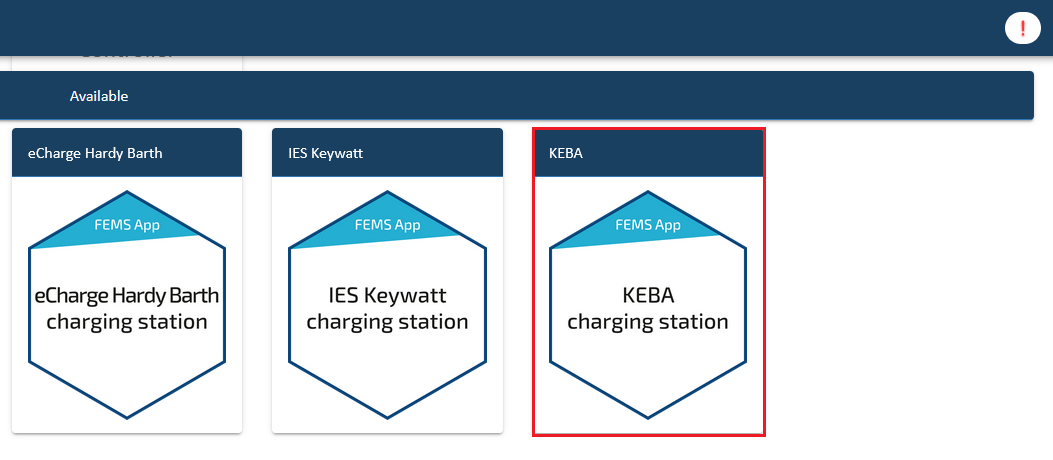

Select the Symphon-E App KEBA KeContact P30 c-series by clicking on it.

fems app 2
Figure 16. App installation — Variant 2: Step 2

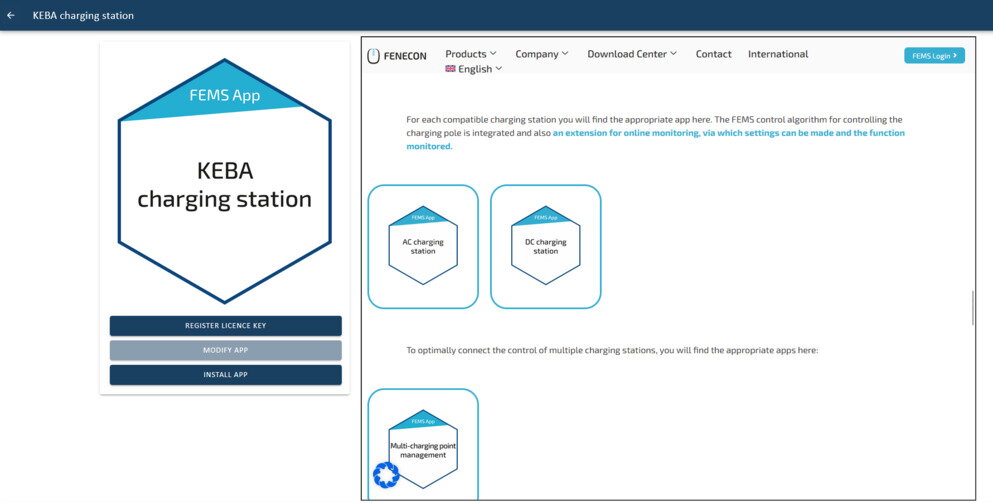

You will then be taken to the app overview.

fems app 3
Figure 17. App installation — Variant 2: Step 3

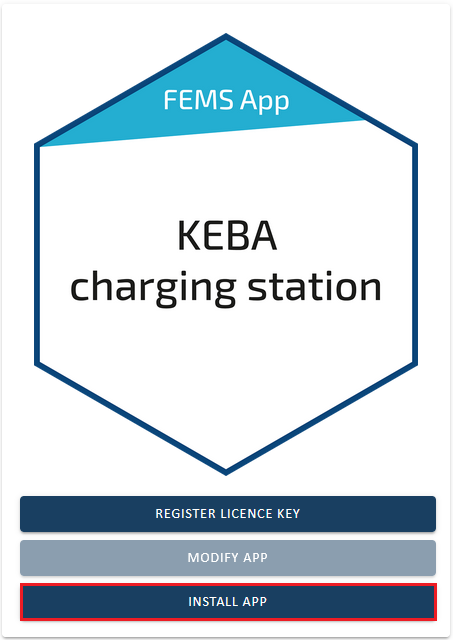

Click on the "Install app" button.

fems app 4
Figure 18. App installation — Variant 2: Step 4

An input mask for redeeming a license key appears.


app center install 09
Figure 19. App installation — Variant 2: Step 5

You have two options here.

4.1.1. Redeem already registered license key

If you want to redeem an already registered license key, select it (1). Then click on the button of the same name to redeem the selected license key (2).

app center install 10
Figure 20. App installation — Variant 2: Step 5a

4.1.2. Redeeming a new license key

If you have not yet registered a license key or wish to redeem a new license key, enter the 16-digit key in the corresponding field (1) and then click on "Validate license key" (2). The entered license key is then checked for validity.

app center key 02
Figure 21. App installation — Variant 2: Step 5b

If the license key is valid, it can be redeemed by clicking on the button of the same name. If the license key is recognized as invalid, please check your entry and try again.

app center key 03
Figure 22. Redeeming a new license key: Step 6

You will then be taken to the installation wizard for Symphon-E App KEBA KeContact P30 c-series.

fems app 5
Figure 23. App installation — Variant 2: Step 7

Some of the input fields are pre-filled. Nevertheless, enter your data if it differs from the default values (e. g. IP address). Otherwise, the default values can be retained (e. g. port, Modbus unit ID).

Mandatory fields are marked with *
Check your entries and make sure that they are correct. Otherwise the respective app will not work properly!

Then click on "Install app".

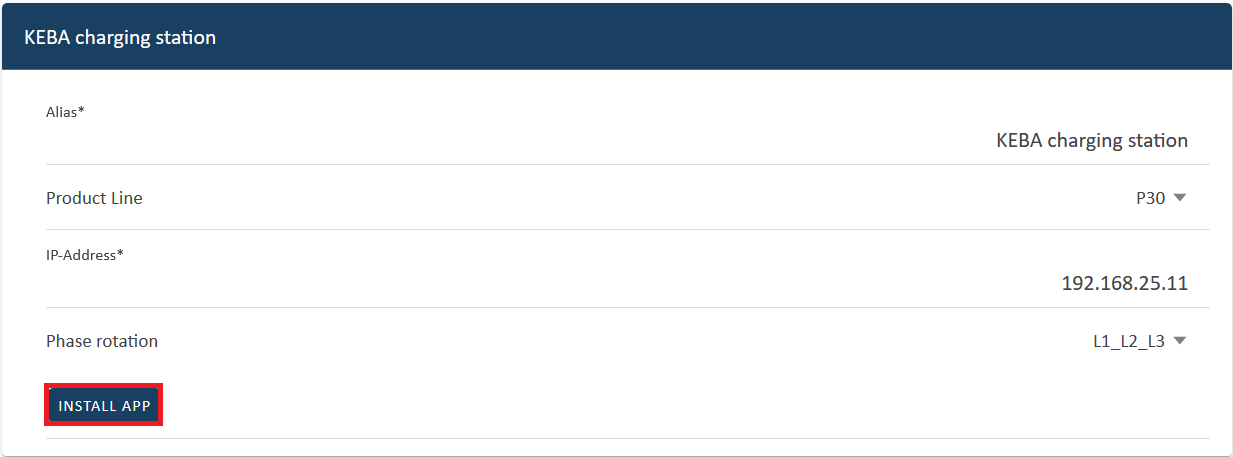

fems app 7
Figure 24. App installation — Variant 2: Step 8

Once the installation process is complete, the new app appears in the overview of the Symphon-E App Center in the "Installed" category.

4.2. Edit EMS app

Apps that have already been installed can be subsequently edited to change configuration settings. To do this, select the respective app in the Symphon-E App Center overview and click on the "Edit app" button. Detailed instructions are found in the user manual Symphon-E App Center.
